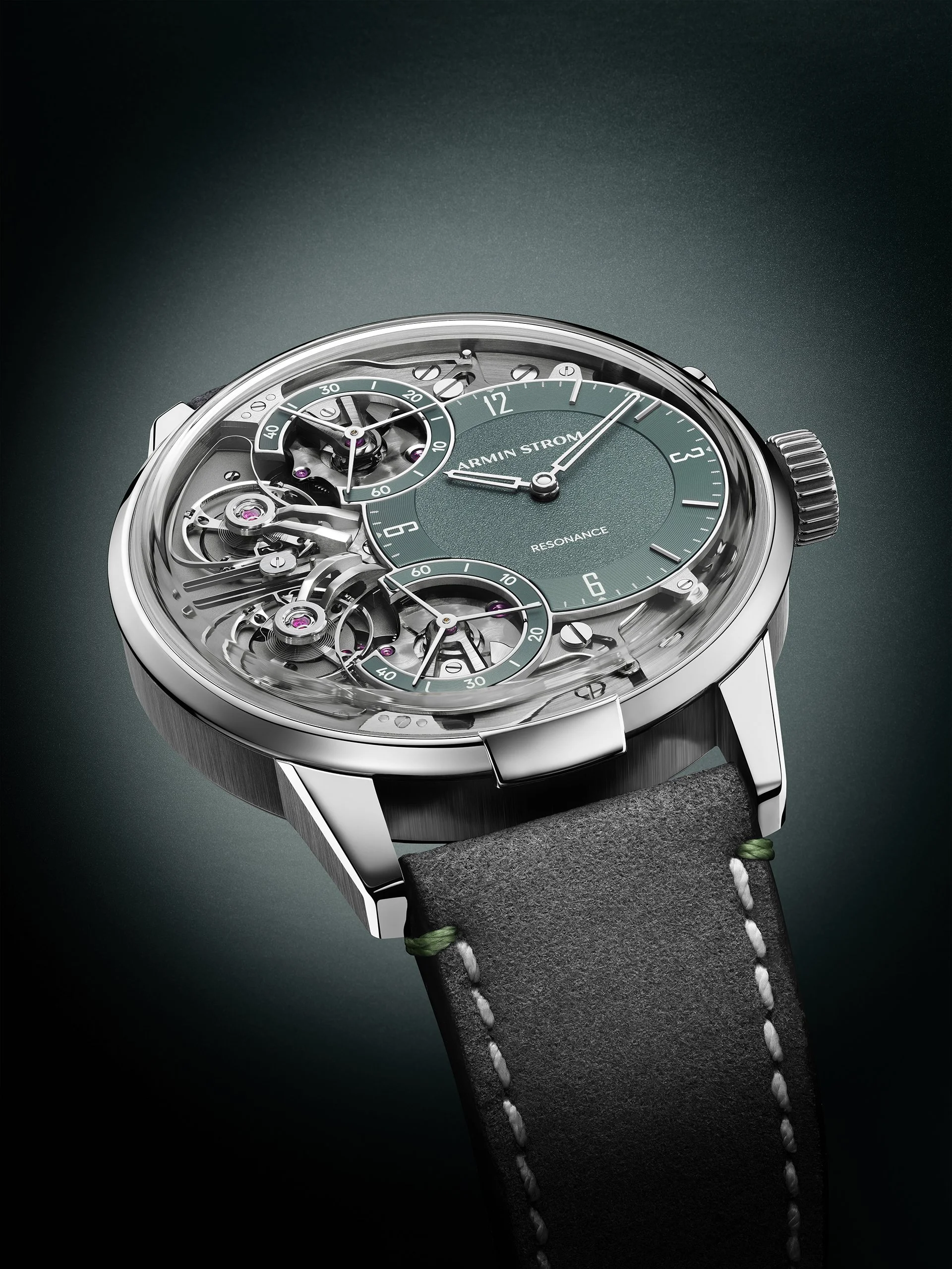

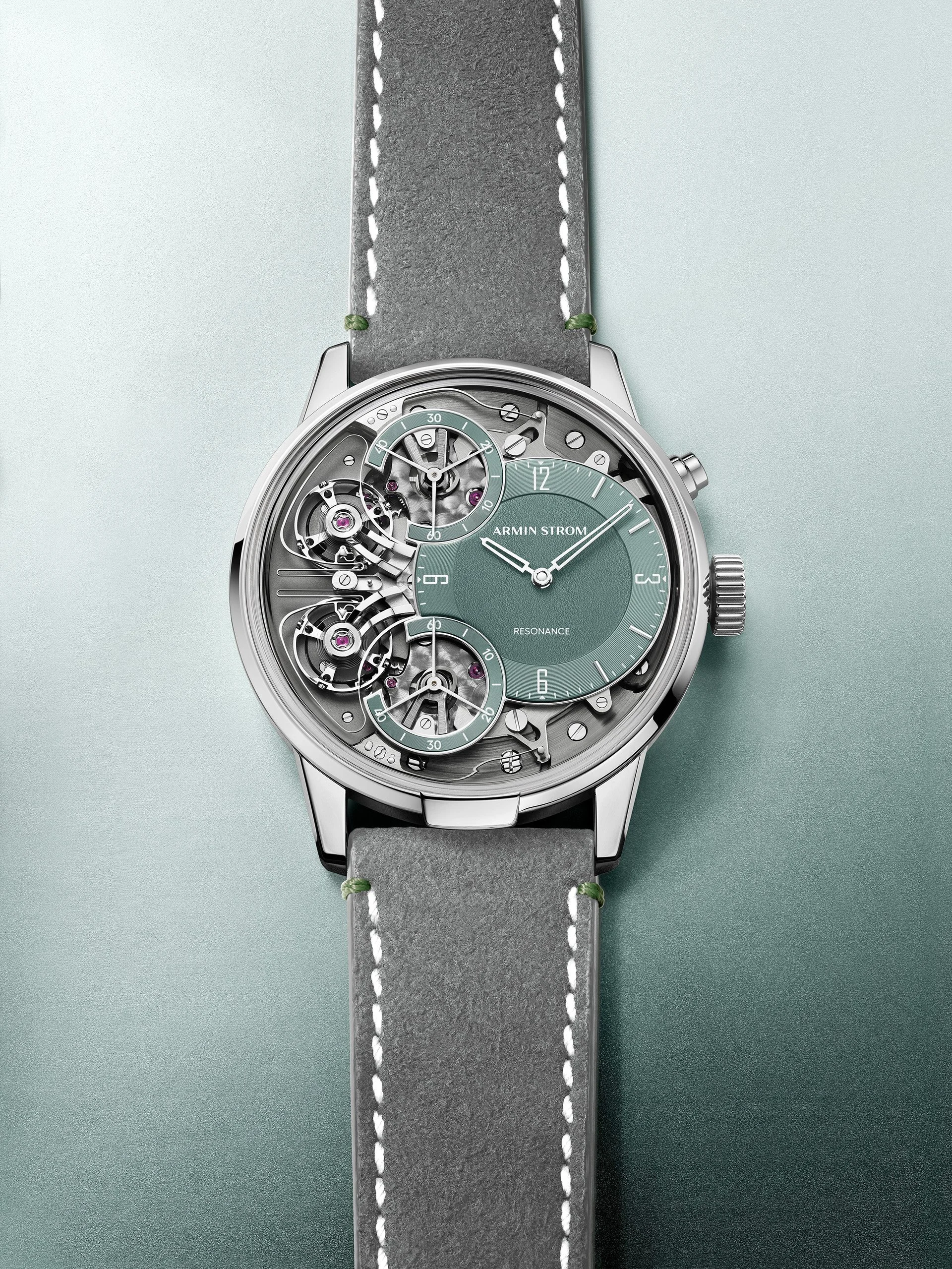

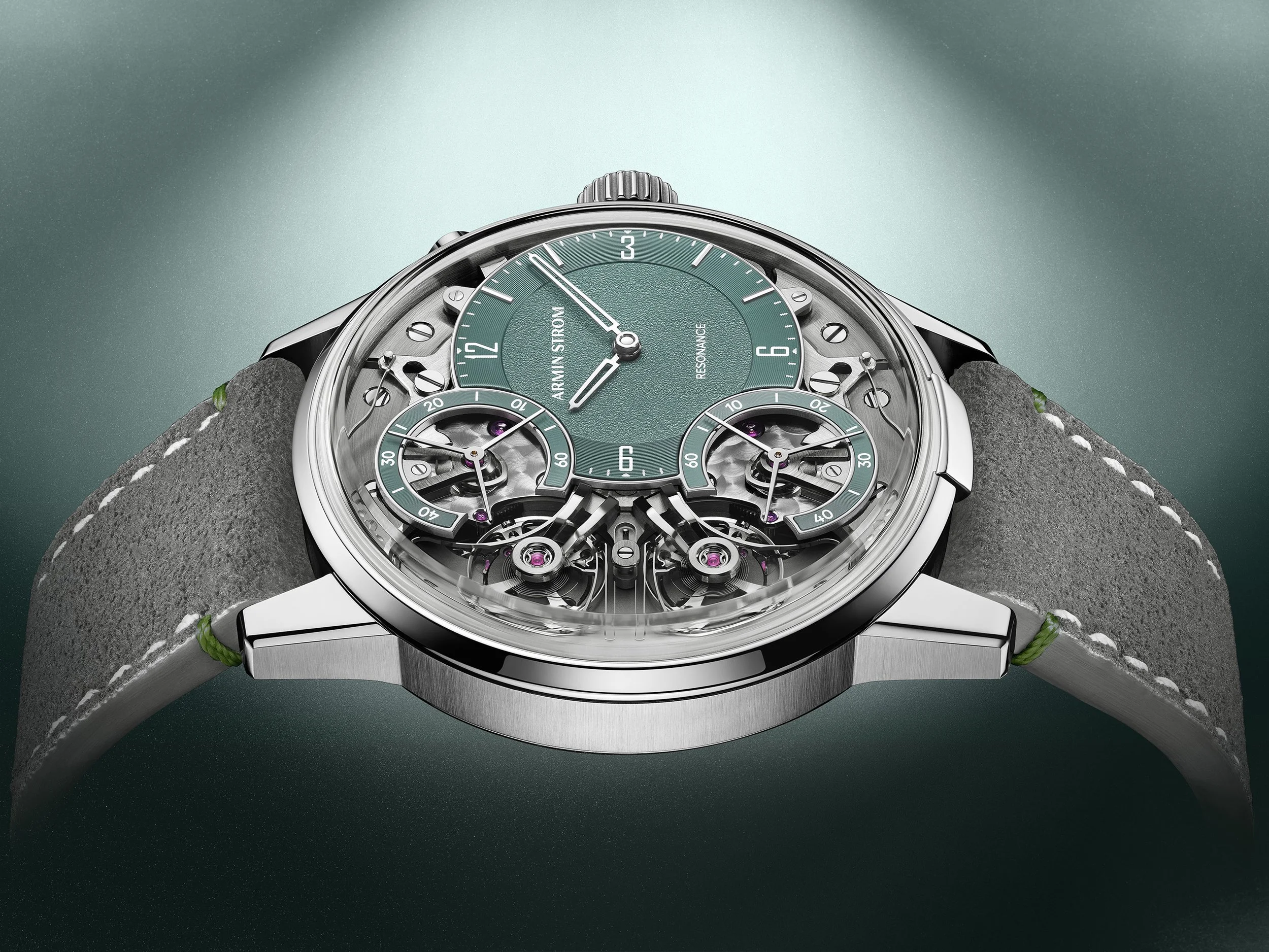

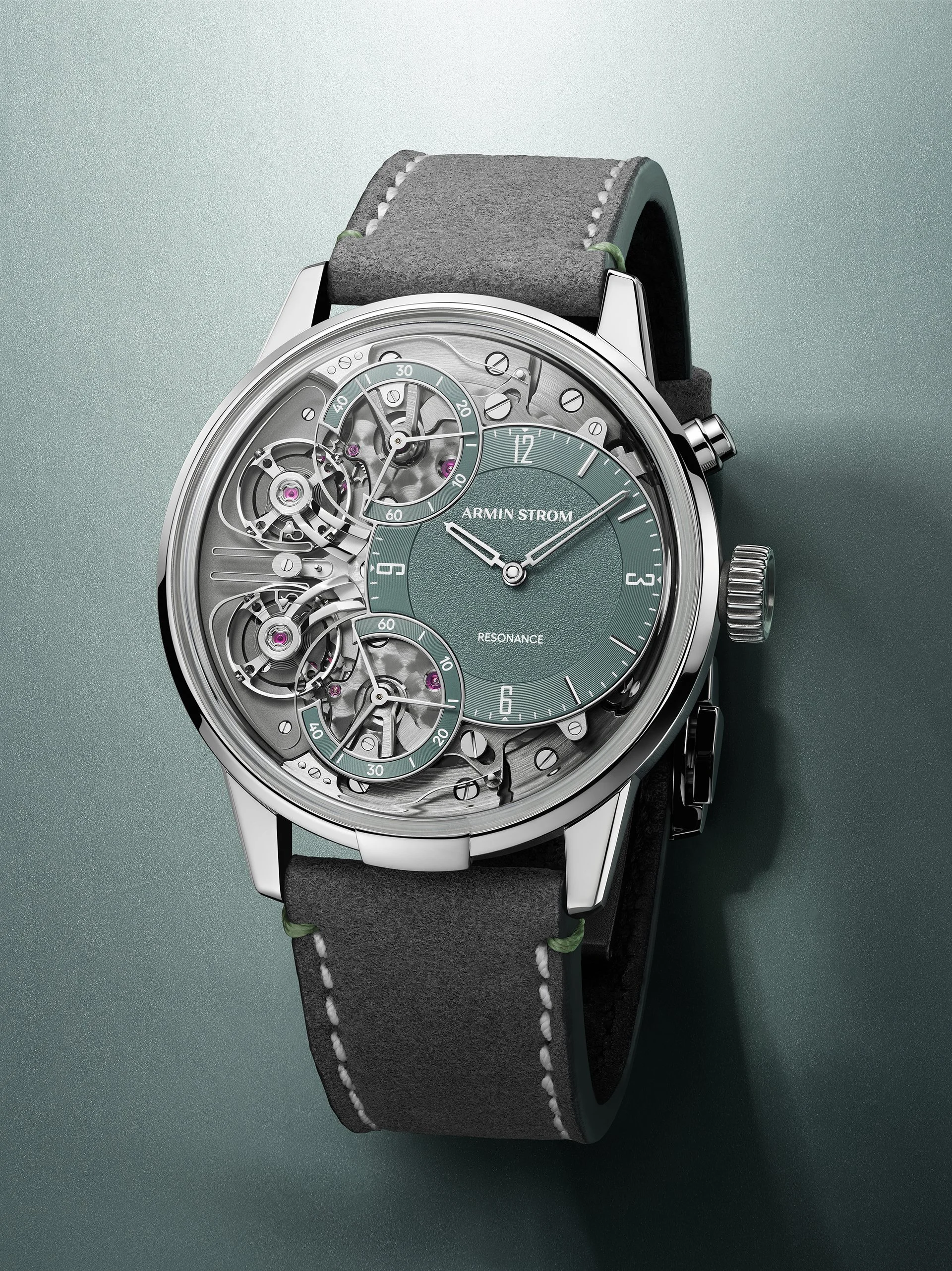

Mirrored Force Resonance Manufacture Edition Green

$89,000.00

The Mirrored Force Resonance Manufacture Edition Green is our take on a fascinating watchmaking phenomenon: resonance. This physical effect has captivated watchmakers since the 17th century. It occurs when two balances oscillate next to each other. They then regulate each other through their emitted vibrations. In theory, this produces significantly more reliable timing rates, aka greater chronometric stability. In reality, and especially in watches, maintaining resonance is very challenging. Wrist movements or minor shocks can easily disrupt it. We created our patented system to solve this problem. It makes resonance more stable and less prone to disturbances. With this, we have achieved something rare: introducing reliability into the unpredictable world of physics.

Limited edition of 50 pieces.

Color:

The Mirrored Force Resonance Manufacture Edition Green is our take on a fascinating watchmaking phenomenon: resonance. This physical effect has captivated watchmakers since the 17th century. It occurs when two balances oscillate next to each other. They then regulate each other through their emitted vibrations. In theory, this produces significantly more reliable timing rates, aka greater chronometric stability. In reality, and especially in watches, maintaining resonance is very challenging. Wrist movements or minor shocks can easily disrupt it. We created our patented system to solve this problem. It makes resonance more stable and less prone to disturbances. With this, we have achieved something rare: introducing reliability into the unpredictable world of physics.

Limited edition of 50 pieces.

SPECIFICATIONS

  • Two independent regulation systems connected by a resonance clutch spring. Twin second fly-back

  • Material
    Stainless steel, Sapphire crystal and case back with anti-reflective coating

    Diameter
    43.00mm

    Height
    11.55mm

    Lug-to-Lug
    49.60mm

    Water-resistance
    3 ATM / 30 m

  • Off-center dial in green with grenage centre and a circular satin-brushed chapter ring and applied polished baton indices

  • ARF21

    Functions
    Hour, minute, small seconds

    Impulse
    Two independent barrels

    Winding Mechanism
    Manual

    Plate and Bridges
    Plate and bridges are decorated at the highest quality level

    Regulating System
    Two independent regulation systems that stabilize each other connected by a resonance clutch spring

    Frequency
    25,200 vph

    Number of Jewels
    39

    Number of Individual Parts
    276

    Power Reserve
    48 hours

  • Steel, manufactured by Armin Strom, decorated by hand

  • Gray Alcantara strap with white stitching

  • Material
    Pin buckle in stainless steel, a folding clasp in stainless steel is available on option

    Width lugs/buckle
    22/20 mm

GSG SKU / 500-00090


The Mirrored Force Resonance Manufacture Edition Green is our precision-engineering showcase for the wrist. At its heart is our patented resonance clutch spring, which took years to perfect. This small and thin component connects two independent balances. It lets them find their natural resonance within minutes. When they synchronise, they become more than the sum of their parts. Their interplay creates a high level of chronometric stability for the whole timepiece. And, thanks to the connecting piece, our resonance system is more resilient to disturbances than many others. The Mirrored Force Resonance features two second hands proving that both movements are working in resonance. And thanks to our twin-seconds flyback mechanism, you can reset both second hands at once without stopping the movement.

THE SCIENCE EXPERIMENT YOU CAN WEAR.

HAND-FINISHED DISTINCTION.

If you know us, you know that our craftsmanship reveals itself in the details. That’s why every component of the Mirrored Force Resonance Manufacture Edition Green resonance is meticulously hand-finished to perfection. The three-dimensional balance bridges are hand-polished, highlighting their sculptural presence. The patented Resonance Clutch Spring is finished with such a flawless black polish that it seems to vanish from certain angles. On the reverse side, the main plate, inspired by the golden age of marine chronometry, features raised engravings and finely skeletonised ratchet wheels, showcasing the movement’s mechanical refinement.
